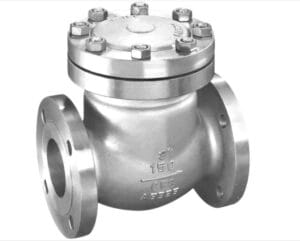

Swing Check Valve

Specification

Size: NPS 2″ ~ 24″

Pressure: CL150~ 2500 lb

Connection: RF, RTJ, BW

Operating temperature: -196°C ~ +560°C

Main material: carbon steel, stainless steel, alloy steel

Design：API594、API6D、JB/T8937、GB/T12236
Structure length：API594、API6D、DIN3202、JB/T89373

Flange：SNSIB16.34、DIN2401、GB/T9124、HG20604、HG20625、SH3406、JB/T74

Test：API598、JB/T9092

Main Parts Material:

Body	ASTM A216WCB								ASTMA351 Cf8
Disc	WCB			CF8		CF8M		Monel	ASTMA351 Cf8
Pin	F6a			F304		F316		Monel	F304
Disc Surface	13Cr	13Cr	STL	304	STL	316	STL	Monel	304	304	STL
Seat Surface	13Cr	STL	STL	304	STL	316	STL	Monel	304	STL	STL
Body	ASTM A351 CF3					ADTM A351 CF8M			ASTM A351 CF8
Disc	ASTM A351 CF3					ADTM A351 CF8M			ASTM A351 CF8
Pin	F304L					F316L			F316
Disc Surface	304L			304L	STL	316	316	STL	316L	316L	STL
Seat Surface	304L			STL	STL	316	STL	STL	316L	STL	STL

Features:

The valve disc closes quickly. Low water hammer pressure.
Horizontal or vertical pipes can be used, easy to install.
The flow channel is smooth and the fluid resistance is small.
Sensitive action and good sealing performance.
The valve disc stroke is short and the impact force of closing the valve is small.
Overall structure, simple and compact, beautiful shape.
Long service life and high reliability.
