  • Top 10 Butterfly Valve Manufactures Worldwide

    Top 10 Butterfly Valve Manufactures Worldwide

    Butterfly valve is a type of quarter-turn valve to regulate the flow. It operates by rotating a disc that mounted on a rod. The disc blocks the flow while the valve is fully closed.  When it is fully opened, the disc rotates a quarter turn so that the fluid can pass through. The butterfly valve market is competitive and features several prominent manufacturers. Here we list 10 well-known butterfly valve manufacturers in the world. They are known for their quality, innovation, and market presence:

    1. Emerson Electric Co. (Fisher and Keystone)

    • Headquarters: Louis, Missouri, USA
    • Set up in 1890, Emerson is a global leader in technology and engineering by providing high-performance butterfly valves  under its Fisher and Keystone brands. The valves play a crucial role in industries such as oil and gas, chemical, and water treatment.

    2. Flowserve Corporation

    • Headquarters: Irving, Texas, USA
    • Founded in 1997, Flowserve is one of the largest manufacturers of pumps, valves, seals, and automation systems. Their butterfly valves are known for durability and performance in demanding environments like power generation, water resources, and chemical processing.

    3. Pentair Valves & Controls (previously Tyco International)

    • Headquarters: London, UK
    • Founded in 1966  (as Tyco International, merged with Pentair in 2012), Pentair offers a wide range of butterfly valves under brands like Keystone, focusing on reliable valve solutions for water treatment, and infrastructure applications.

    4. KSB SE & Co. KGaA

    • Headquarters: Frankenthal, Germany
    • KSB is a leading supplier of pumps, valves, and related systems.  Widely used in water treatment, building services, energy, and industrial applications due to the precision engineering and reliability.

    5. Bray International, Inc.

    • Headquarters: Houston, Texas, USA
    • Founded in 1986, Bray specializes in flow control and automation products, including innovative and high-performance butterfly valves. Widely used in oil and gas, water and wastewater, and power industries.

    6. AVK Group

    • Headquarters:  Galten, Denmark
    • Founded in 1941, AVK Group is also a global manufacturer of valves, hydrants, and accessories for water and gas distribution, sewage treatment, fire safe. Their butterfly valves are famous for high quality and reliability.

    7. Crane Co.

    • Headquarters: Stamford, Connecticut, USA
    • Founded in 1855, Crane Co. produces a wide range of industrial products including butterfly valves. Known for their robust design  with Crane ChemPharma & Energy brand.

    8. Velan Inc.

    • Headquarters: Montreal, Canada
    • Founded in 1950, Velan is a global leader in the design and manufacture of industrial valves, including high-performance butterfly valves. They also serve various industries, including power generation, oil and gas, and petrochemicals.

    9. Danfoss A/S

    • Headquarters: Nordborg, Denmark
    • Founded in 1933,  Danfoss is a global leader in energy-efficient solutions. It offers a range of butterfly valves widely used in HVAC, industrial refrigeration, and water management applications.

    10. Neles Corporation

    • Headquarters: Vantaa, Finland
    • Founded in 1956 (originally part of Metso, became Neles in 2020), Neles specializes in flow control solutions and services for process industries, including oil and gas, pulp and paper, and chemicals. Moreover,their butterfly valves are known for reliability and efficiency.

    Conclusion

    These butterfly valve manufacturers are leaders in the industry due to their extensive product ranges, commitment to quality, and strong global presence. Their butterfly valves play a crucial role  in various applications, like water treatment , chemical processing ,oil and gas ,power plant.  Beside, continuously innovation makes these companies remain at the forefront of meeting the diverse industry needs .

    However, with the rapidly growing due to increasing industrialization and infrastructure development. Chinese butterfly valve manufacturers are also enhancing their technological capabilities and quality standards to meet needs globally. The market is characterized by competitive pricing and expanding domestic and international demand, thus positioning China as a significant player in the global butterfly valve market.



  • Triple Eccentric Butterfly Valve

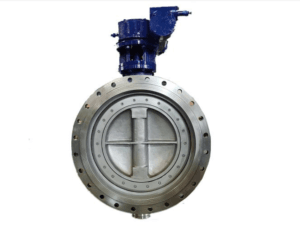

    Triple Eccentric Butterfly Valve

    Product

    Ventilation Butterfly Valve

    Triple Eccentric butterfly valve is installed in the diameter direction of the pipe. In the cylindrical channel of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, the rotation angle is between 0 ° ~ 90 °, and when the rotation reaches 90 °, the valve is fully open. Features of the new high life stainless steel butterfly valve and problems with the butterfly valve during use. widely used in metallurgy, electric power, petrochemical, water supply and drainage and municipal construction and other industrial pipelines with medium temperature ≤ 425 °C for regulating flow and cutting off fluids.

    Specification

    Size: DN100～DN3600

    Pressure: 150LB 300LB

    Connection: Wafer type, Lug Type,

    Body: WCB；stainless steel ；Aluminum bronze

    Seat: Stillite；tungsten carbide; nickel alloys; Monel; stainless steel

    Material:  Water, oil, gas, and various corrosive media

    Main Parts Material:

    BODY、DISC

    WCB

    CF8/304

    CF3M/316L

    STEM

    2Cr13

    304

    316L

    O RING

    304+Flexible graphite

    304+PTFE

    304+PTFE

    PACKING

    Flexible graphite

    PTFE

    PTFE

    Features

    1. The butterfly valve adopts three eccentric hard seal structure, seat and plate are almost wear-free
    2. The dual advantages of metal hard seal and elastic seal, have excellent sealing performance in low temperature and high temperature, corrosion resistance, long service life and other characteristics.
    3. Valve disc overlays HF, which is wear-resistant and has a long service life
  • High-performance Bufferfly Valve

    High-performance Bufferfly Valve

    Product

    High-performance Bufferfly Valve

    Specification

    Size：NPS 2”～48”/DN50～DN4000
    Pressure: 150LB～300LB/PN10～PN50；
    Matrial：Carbon steel, heat-resistant steel, stainless steel, nickel-based alloy, titanium alloy, etc.
    Temperature range:  -196℃～300℃；
    Connection method:  clamp, flange, lug, etcDesign: API 609, MSS SP-67
    Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
    Pressure Test: API 598
    Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
    Top Flange: ISO5211
    Application: petroleum, petrochemical, natural gas, electric power, water conservancy and other industries.

    Main Parts Material:

    Body

    Carbon Steel

    WCB

    Carbon Steel

    A351 Gr CF8  CF8M  CF3M

    Disc

    Carbon Steel

    A351 Gr CF8  CF8M  CF3M

    Retainer

    Carbon Steel

    A351 Gr CF8  CF8M    CF3M

    Seat

    PTFE PTFE+CLASS FIRER PTFE+GRARHITE

    PTFE /RPTFE

    Bushing

    PTFE+316SS

    PTFE+316SS

    Stem

    Carbon Steel

    A182 F304  F316 A564 Gr.630 A479 Gr.XM-19

    Pin

    Carbon Steel

    A240 Gr.316

    Seal

    PTFE

    PTFE

    Gland Packing


    PTFE PTFE+GRAPHITE


    PTFE RPTFE

    Feature:

    1. Double eccentric structure design. The uniquely designed lip sealing structure achieves zero leakage of two-way bubble level under elastic interference and self-sealing.
    2. Interchangeable PTFE seats can be used in a variety of different working conditions to achieve long service life and effect.
    3. Anti-blowout valve design.
    4. Under the working condition of fugitive medium, the low-leakage carbon fiber bowl type combined with packing structure can be adopted to meet the requirements of ISO15848 and API622 standards.
    5. The tangential pin of the valve stem is half on the valve plate and half in the valve stem, and the tangential positioning makes the squeeze force of the valve plate and the valve instead of the shear stress, making the connection more reliable.
    6. Equipped with ISO 5211 standard connecting plate, pneumatic device, electric device, gas-liquid linkage device and other remote control mechanisms can be installed for automatic control system.
  • PTFE Lined Flange Butterfly Valve

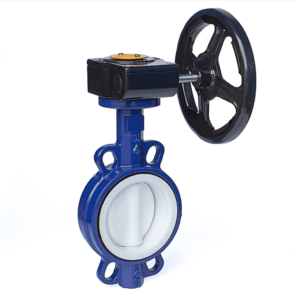

    PTFE Lined Flange Butterfly Valve

    Product

    PTFE Lined Flange Butterfly Valve

    Rubber-lined butterfly valve refers to the rubber and the valve body in the butterfly valve vulcanization into one by high temperature, and the sealing structure with different performance (fully rubber-lined and semi-rubber-lined butterfly valve)to meet the normal use of rubber-lined butterfly valve in different application places. The valve not only has the characteristics of anti-corrosion, wear-resistant, non-toxic, anti-mildew, etc., but also has reliable sealing performance. The rubber-lined butterfly valve is suitable for the transportation of liquids and gases (including steam) and other media in various types of industrial pipelines, as well as the use of weakly corrosive fluid media, and do two-position control or medium flow adjustment. The working temperature generally does not exceed +180 °C, and the nominal pressure ≤ 1.6MPa. Widely used in food, medicine, chemical, petroleum, electric power, textile, papermaking and other places.

    Specification

    Size: NPS 2”-8”
    Pressure: 150LB
    Body Materials: Cast Iron/Ductile Iron
    Seat Materials: EPDM / NBR/ VITON / PTFE
    Design: API 609, MSS SP-67
    Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
    Pressure Test: API 598
    Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
    Top Flange: ISO5211
    Suitable Medium: air, Sewage, steam, gas, oil, etc

    Main Parts Material:

    Part

    Material

    Body

    WCB,QT450

    Disc

    WCB,QT450

    Shaft

    2Cr13

    O ring

    EPDM / NBR/ VITON / PTFE

    Packing

    Flexible graphite

    Features:

    1. The use of rubber lining without pins ensures the isolation of the medium from the metal and improves the reliability of the product.
    2. The sealing surface has good wear resistance
    3. It can be installed in any position, and the maintenance is convenient.
    4. The seal can be replaced, and the sealing performance is reliable to achieve zero leakage in both directions.
    5. Rubber material has no toxicity, and is antibacterial and mildew-resistant.

  • Fully Weld Butterfly Valve

    Fully Weld Butterfly Valve

    Product

    Fully-Weld Butterfly Valve

    Fully Weld butterfly valve is used in dusty cold or hot air gas pipelines in ventilation and environmental protection projects in the chemical, building materials, power stations, glass and other industries as flow regulating or cutting devices for gas media.



    Specification:

    Size: DN100～DN3600

    Pressure: 150LB 300LB

    Connection: Wafer type, Lug Type,

    Body: WCB；stainless steel ；Aluminum bronze

    Seat: Stillite；tungsten carbide; nickel alloys; Monel; stainless steel

    Material:  Water, oil, gas, and various corrosive media

    Main Parts Material:

    BODY,DISC

    WCB

    CF8/304

    CF3M/316L

    STEM

    2Cr13

    304

    316L

    O RING

    304+Flexible graphite

    304+PTFE

    304+PTFE

    PACKING

    Flexible graphite

    PTFE

    PTFE

    Features：

    1. The fully weld butterfly valve is  with a simple structure, easy to maintain and install.

    2.Small in size and light in weight, suitable for compact installation space.

    3. Low fluid resistance: the internal flow channel of the welded butterfly valve is unobstructed, and the resistance when the fluid passes through is small, which can reduce energy consumption.


    4. Good sealing performance: the valve adopts rubber sealing ring or metal sealing ring, which has good sealing performance and can effectively prevent leakage.

    5.  High temperature resistance and corrosion resistance:  valve can be made of high temperature resistant and corrosion resistant materials, suitable for a variety of working conditions.
