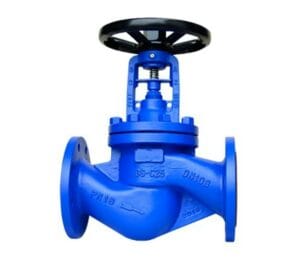

Bellows Sealed Globe Valve

Bellows sealed globe valve adopts bellows seal structure to eliminate stem leakage. Suitable for high temperature and high pressure media such as steam and hot oil, widely used in petrochemical and power industries.

Specification

Size Range: DN15-DN400

Pressure: PN16/25/40/64

Body Materials: WCB/CF8/CF8M

Disc Materials: A105+13Cr/CF8

Stem Materials: 2Cr13/304

Face to face dimension: DIN3202

Flanged ends: DIN2543-2545

Test & inspection: DIN3230

Working temperature：-29℃～425℃

Suitable medium：Water,Oil,Gas etc.

Application ：Municipal construction, Power, Medicine, Petroleum industry

Main Parts Material:

Body	Bonnet	Stem	Disc	Seat	Paking
WCB	WCB	13Cr	2Cr13	2Cr13	Flexible graphite
				STL
CF8	CF8	304	304	304	Flexible graphite
				STL	PTFE
CF8M	CF8M	316	316	316	Flexible graphite
				STL	PTFE
CF3	CF3	316	304L	304L	Flexible graphite
				STL	PTFE
CF3M	CF3M	316	316L	316L	Flexible graphite
				STL	PTFE

Features :

Bellows sealed globe valve is simple in structure and good in performance.
The stem nut adopts surface nitriding to improve the surface hardness .
The medium flange bolt is made of high-strength alloy steel, with the ability to resist high temperatures.
Double sealing of packing and bellows to achieve zero leakage.
The bellows is designed in the inner cavity of the valve cover, which avoids direct flushing with the medium and improves the service life of the bellows.
The bellows adopts 2~4 times overlap to prevent the valve leakage due to the damage of the single layer of the bellows, and prolong the service life of the valve.
