Product

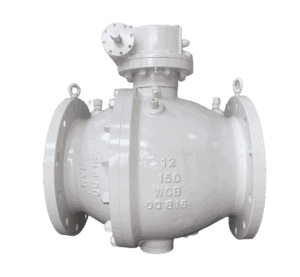

Cast Steel Trunnion Mounted Ball Valve

Cast Steel Trunnion Mounted Ball Valve is suitable for long-distance pipelines and general industrial pipelines, and its strength, safety, harsh environmental resistance, etc., suitable for various corrosive and non-corrosive media. The fixed ball valve has small torque, small seat deformation, stable sealing performance and long service life, and is suitable for high-pressure and large-diameter occasions.

Main Parts Material:

Nominal diameter

2″ – 48″ (DN 50-DN 1200)

Pressure range

CLASS 150 – CLASS 900

Design standard

API6D、ASME B16.34、BS5351、ISO17292、DIN

Connection ends

RF、RTJ BW、NPT、SW

Bore

Full Bore, Reduced Bore

Materials

WCB, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M

Operation

Manual、Pneumatic、Electric、Gas-liquid interaction etc.

Temperature

-196℃-540℃

Pressure Test

API598 API 6D BS12569

Application

Petroleum、Natural gas、Chemical、petrochemical、Power station、Metallurgy、Papermaking etc.



Features:

  1. The valve seat adopts spring structure, which has good low-pressure sealing performance.
  2. Bi-directional sealing characteristic, using the built-in discharge valve, the cavity of the valve body can be discharged outward.
  3. The valve shaft adopts anti-blowout protection structure, low friction coefficient bearing, etc. It has excellent performance and high reliability.
